Aluminum thickness:1.4mm
Glass: 5 clear+12A+5mm clear glass
Optional colors:sand gray.coffee.and other customized color
Window frame parameters: 68*40
Window parameters: 80*30
Anti-Mosquilo Screen: 304 stainless steel
Opening type:Casement window (Side hung)l. Awning window (top hung), Casement with mesh,Awning with mesh

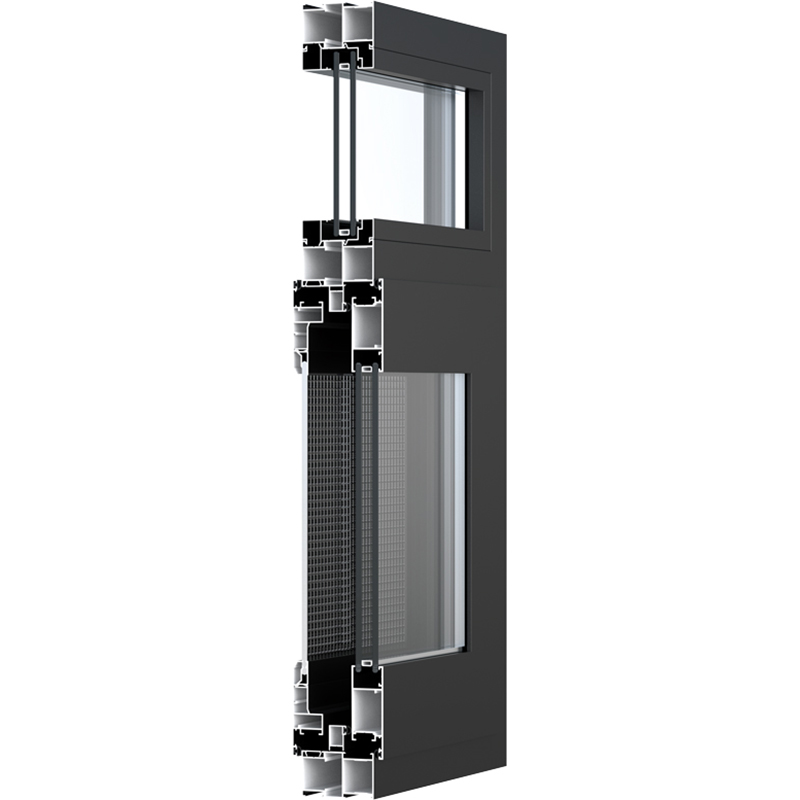

Sturdy and Durable Structure: Adopts high-quality aluminum alloy profiles (e.g., 6063-T5 primary aluminum), which boast high material strength and strong deformation resistance. The corner connection of the frame and sash uses glue-injected corner brackets, combined with integrated external pressing lines, enhancing the overall structural strength for a more robust window and higher compression resistance.
Excellent Thermal Insulation: Features a standard multi-cavity profile structure to effectively block heat transfer. The multi-channel sealing design (e.g., three-channel sealing achieved by soft-hard co-extruded gaskets inside the cavity) is paired with insulated glass—options include 5+15A+5, 5+20A+5, or even triple-glazed double-cavity configurations. Inert gas can also be filled between the glass layers, effectively blocking external heat and cold air, reducing the window’s heat transfer coefficient, and achieving excellent thermal insulation.
Effective Sound Insulation: Comes with insulated glass (e.g., 20Ar insulated glass) filled with inert gas. Combined with multi-channel sealing gaskets, it effectively blocks external noise, creating a quiet and comfortable indoor environment for users.
Superior Water and Air Tightness: Adopts an inclined drop-type hidden drainage structure for timely water discharge without accumulation, effectively preventing wall leakage during rainy days. Meanwhile, the multi-channel sealing gaskets ensure excellent air tightness, effectively blocking dust, rainwater, and other debris from entering the room.
High Security: Can be equipped with anti-theft grilles and high-quality locks to effectively ensure home security. Additionally, sashes can be designed with inward-opening or inward-tilting functions—inward-opening prevents the risk of sashes falling outdoors, while inward-tilting ensures ventilation and avoids the risk of break-ins.
Stylish Appearance: Features a flush frame design (both interior and exterior), with smooth and sleek lines that enhance the window’s elegant look. It matches various architectural styles seamlessly. Some models also adopt a narrow-frame design (e.g., 61mm narrow frame for open sashes), making the overall window more stylish and high-end.
Easy to Use: Offers flexible opening methods (inward-opening, outward-opening, etc.) that can be selected based on user needs.
Q: What does “68” mean in the Series 68 Thermal-Break Casement Window with Integrated Screen?
A: “68” refers to the cross-sectional dimension of the thermal-break aluminum profile for the window frame, typically indicating that the frame width is 68 millimeters.
Q: What is the thermal insulation performance of this window?
A: The Series 68 thermal-break window adopts a standard multi-cavity profile structure to effectively block heat transfer. Meanwhile, the insulated glass offers multiple configuration options, and inert gas can be filled between the glass layers—further reducing the window’s heat transfer coefficient and achieving excellent thermal insulation.
Q: What is the anti-theft performance of the Series 68 Thermal-Break Casement Window with Integrated Screen?
A: This window can be equipped with anti-theft grilles and high-quality locks. Combined with its integrated screen design (the screen is usually made of diamond mesh), it has a certain anti-pry capability, effectively ensuring home security.
