Aluminum thickness: 1.4/1.8mm
Glass:5 clear+20A+5mm clear glass
Optional colors:sand gray,coffee,and other customized color
Window frame parameters: 108 width *54*36
Window Parameters: (1.4mm thickness)63*42mm , (1.8mm thickness)63*50mn
Anti-Mosquito Screen: 304 stainless steel
Opening Method:Casement window Side hung, Awning window (top hung), Casement with mesh Awning with mesh
Benefits of 108 SERIES THERMAL BREAK CASEMENT WINDOW WITH MESH

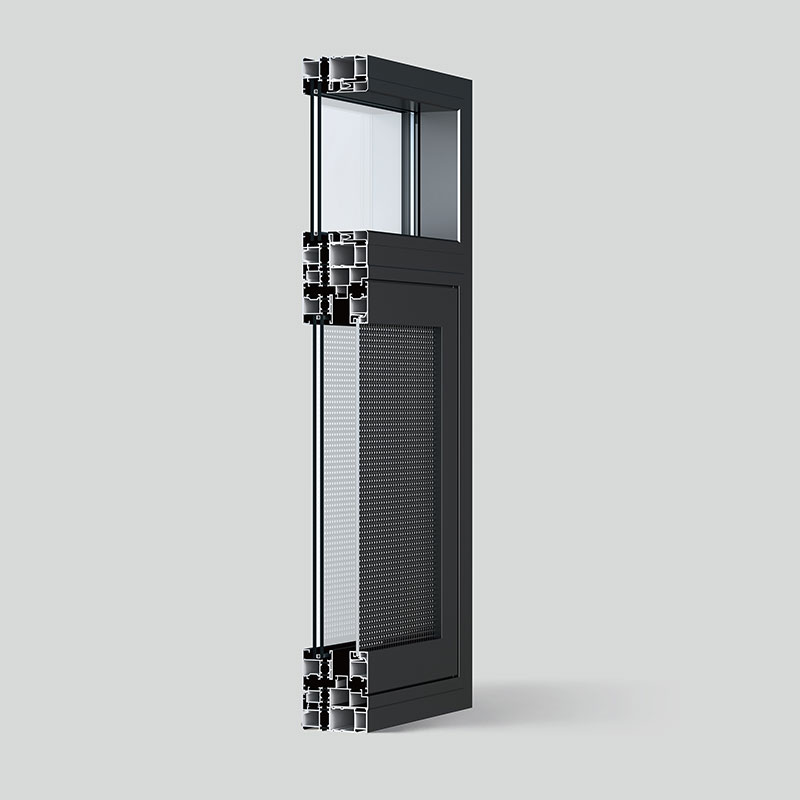

Excellent Thermal Insulation: Adopts thermal-break aluminum alloy profiles, paired with extra-wide PA66 thermal strips, creating an effective thermal barrier between indoor and outdoor spaces. Meanwhile, the multi-cavity structure further blocks heat transfer; when combined with insulated glass (filled with argon gas), it significantly reduces thermal conduction and maintains a stable indoor temperature.
Good Sound Insulation: The insulated glass itself provides basic sound insulation, and when combined with the multi-cavity structure and high-quality sealing gaskets, it effectively blocks external noise.
High Security: On one hand, the integrated screen design uses standard 304 stainless steel diamond mesh—featuring high strength and impact resistance, it not only prevents mosquitoes and insects but also serves an anti-theft function.
Superior Water & Dust Resistance: The multi-channel sealing gasket design effectively prevents rainwater and dust from entering the room. Additionally, the hidden drainage design with enlarged drainage holes prevents water seepage and backflow, ensuring excellent water tightness and air tightness of the window.

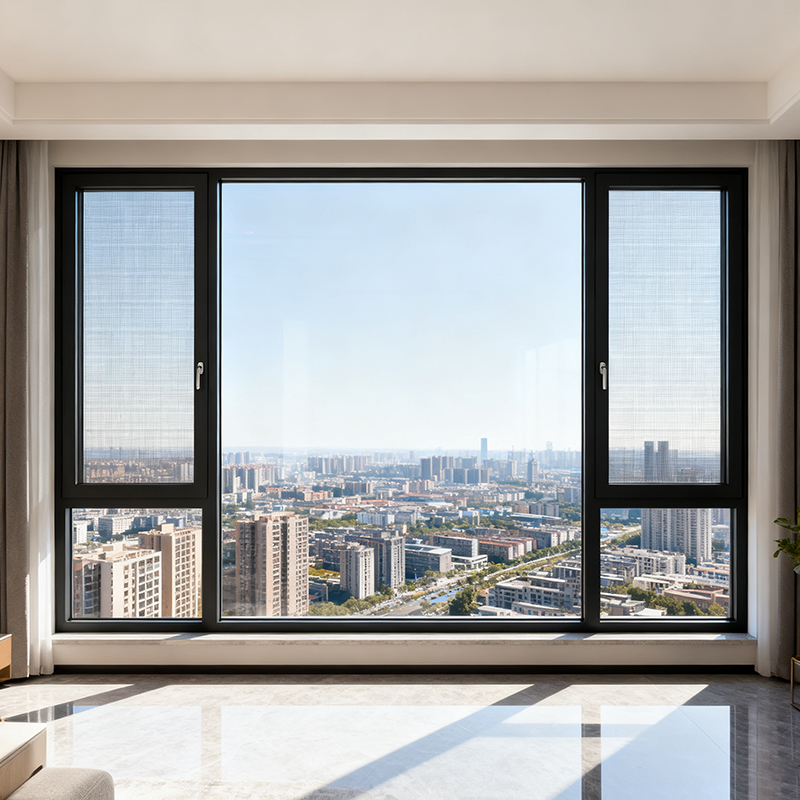

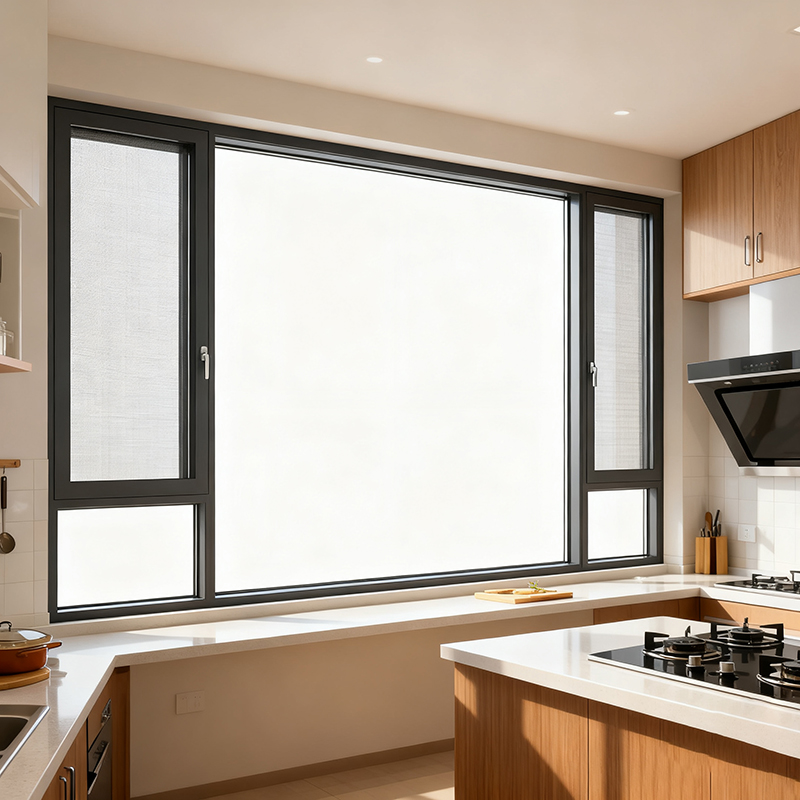

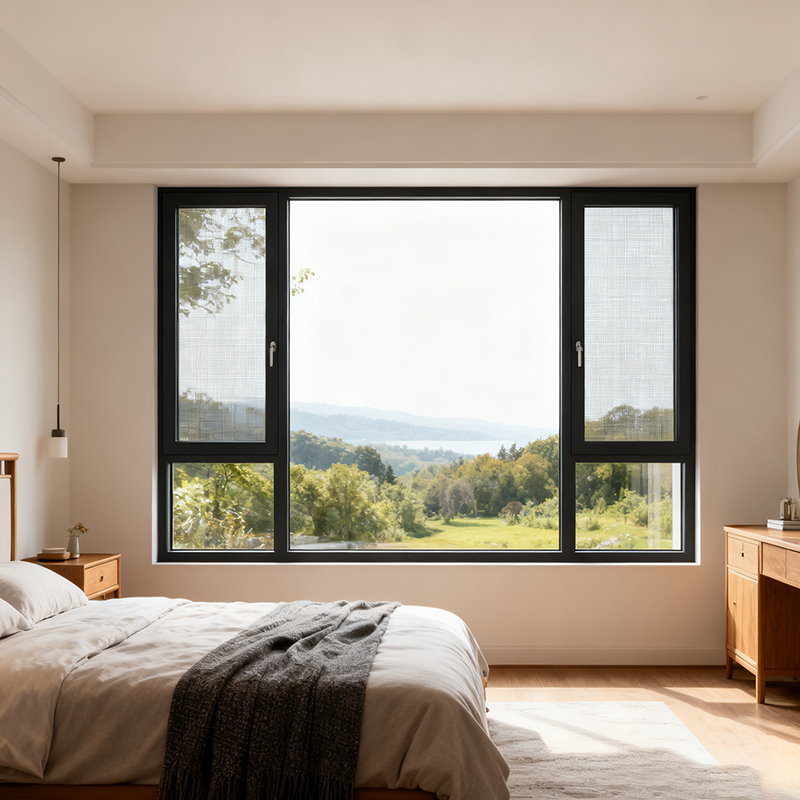

Wide Application Range: It can be manufactured with various opening methods (inward-opening, outward-opening, top-hung, inward-opening & tilting, etc.) to meet the needs of different rooms and users. Suitable for ordinary residences, villas, and commercial spaces alike, it is especially ideal for families pursuing extreme energy efficiency, quietness, and home security.
Q:What is the main advantage of the 108 – series broken – bridge aluminum alloy window with integrated screen?
A:The 108 – series broken – bridge aluminum alloy window with integrated screen has excellent thermal insulation and sound insulation performance. The broken – bridge aluminum alloy profile, combined with a wide – width thermal break strip, can effectively block heat transfer. The hollow tempered glass further enhances the thermal insulation and sound insulation effects. In addition, the integrated screen design not only prevents mosquitoes and insects but also has a certain anti – theft function.
Q:How about the wind – resistance performance of the 108 – series broken – bridge aluminum alloy window?
A:The 108 – series broken – bridge aluminum alloy window has strong wind – resistance performance. It usually adopts high – quality aluminum alloy profiles with a certain thickness, and the structural design is reasonable. For example, some products have a multi – chamber structure, which can effectively resist strong winds. Generally, it can meet the requirements of different wind – pressure areas.
Q:Can the color of the window frame be customized?
A：Yes, the color of the window frame can usually be customized. You can choose the color that matches your home decoration style according to your preferences. Common surface treatment methods include spraying and anodizing, which can provide a variety of color options.
Let’s take a closer look at the PAVIDA factory – where every detail in the production of aluminium windows and doors is of paramount importance. Our well-organized workshops, advanced machinery and highly skilled technicians work in harmony to transform high-quality aluminium into high-performance and aesthetically pleasing products, which fully demonstrates the professional strength of our factory as a reliable global manufacturer.
